Standard Products - WERNER Ladder 工作梯




WERNER T7400 Fiberglass Twin Ladder 雙面人字梯

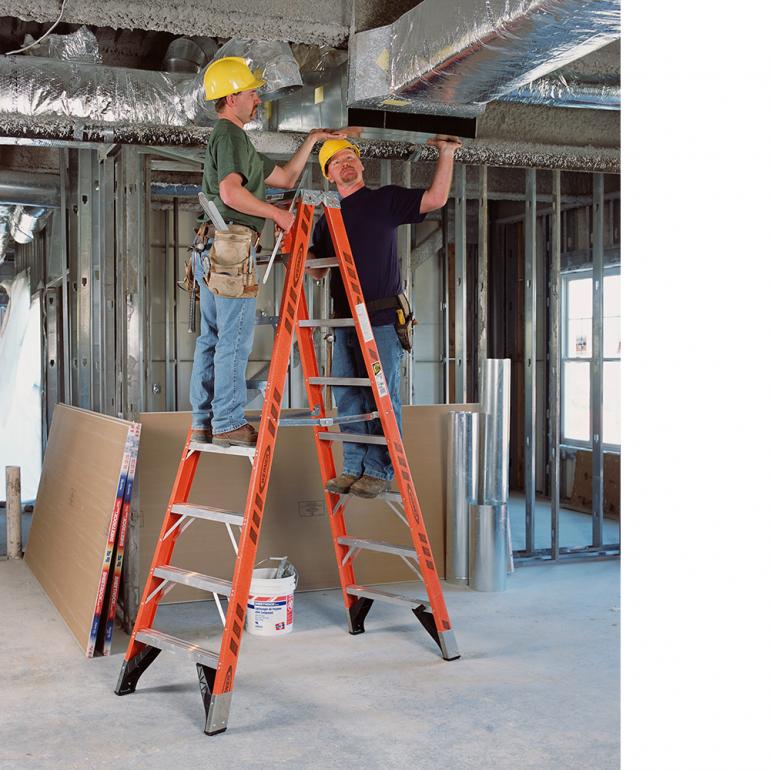

Werner T7400 twin Step Ladders feature a duty rating of 375 pounds per side of the ladder. Designed for one or two-person jobs, the T7400 ladders have heavy gauge aluminum tops and feature heavy duty internal spreaders to resist damage around the worksite or in transit. The GLAS*MARK® Violater stripes on the rails make the ladder more visible and the EDGE® bracing system and external rail shields add to the long lasting durability of these ladders. Fiberglass rails are non-conductive for working near electricity.
Features
-
Heavy gauge aluminum extruded top with thick side plates
-
Back-up aluminum plates reinforce all top connectors
-
Shoulder bolt and lock nut on top hinge; 4 solid aluminum rivets attach top to each rail
-

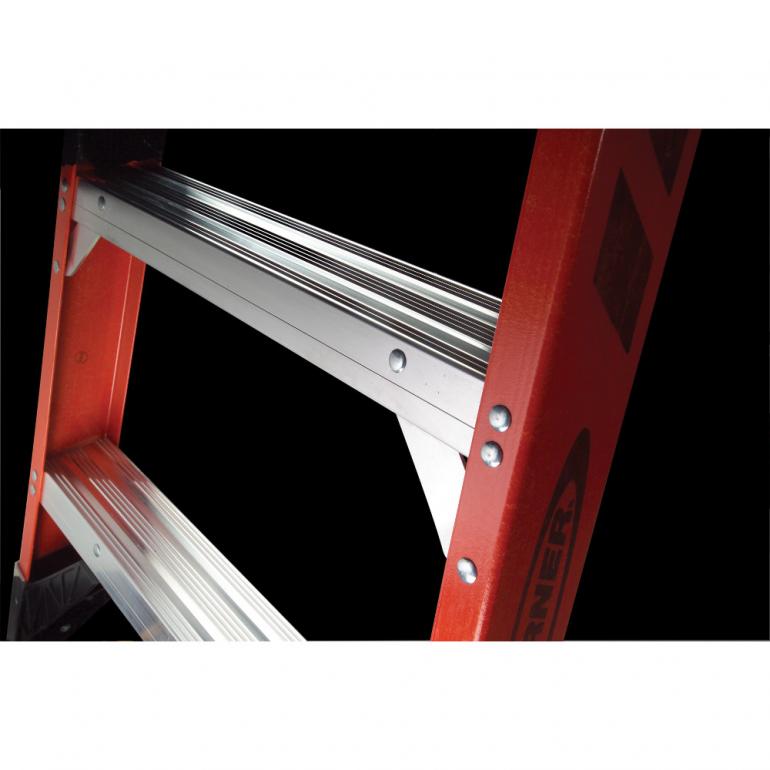

Slip-resistant TRACTION-TRED® steps are double riveted and knee-braced
-
Extra heavy duty internal aluminum spreaders
-
Rubber step bumpers to resist damage
-
The EDGE® bracing system helps to decrease damage to rail
-
Glas*Mark® Violator stripes on rails allow ladder to be more visible
-
Aluminum external rail shield helps protect against abrasion damage
-

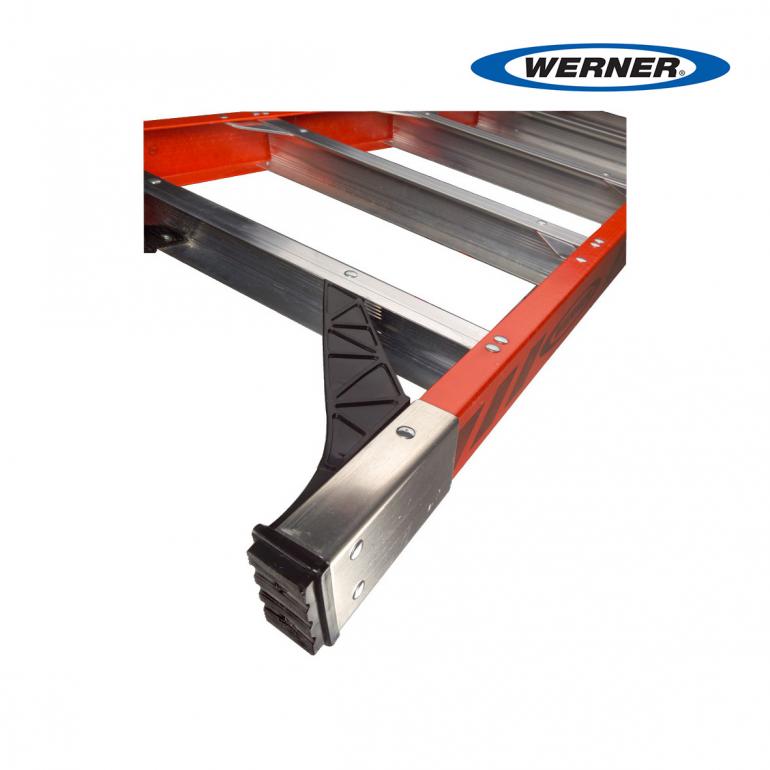

Shoe pads riveted to the EDGE® structure
-
Every rivet backed up by metal, metal plates or washer to protect rails
-
Design for one or two-person jobs
-
Maximum load per side, including person and materials, shall not exceed duty rating of ladder
Specifications
Model
|
Size
|
Reach Height
|
Max Standing Height
|
Capacity
|
T7404
|
4ft
|
8ft
|
1ft 11in
|
375lbs
|
T7405
|
5ft
|
9ft
|
2ft 10in
|
375lbs
|
T7406
|
6ft
|
10ft
|
3ft 10in
|
375lbs
|
T7408
|
8ft
|
12ft
|
5ft 9in
|
375lbs
|
T7410
|
10ft
|
14ft
|
7ft 8in
|
375lbs
|
T7412
|
12ft
|
16ft
|
9ft 7in
|
375lbs
|
T7414
|
14ft
|
18ft
|
11ft 6in
|
300lbs
|
T7416
|
16ft
|
20ft
|
13ft 5in
|
300lbs
|
T7418
|
18ft
|
22ft
|
15ft 4in
|
300lbs
|
